Technical Specifications
Alien Ramp
Designed and engineered by NEO-DYNE B.V.
Below are the key technical measurements for single and dual-ramp configurations.
Main Dimensions & Capacity
- Standard Ramp Length: 1900 mm / 74.8"
- Standard Ramp Width: 700 mm / 27,6"
- Maximum Load Capacity: 300 kg / 660 lbs
Wheelbase
- Maximum Wheelbase: 1625 mm / 64"
- Maximum Wheel Outer Diameter (OD): 600 mm / 23.5"

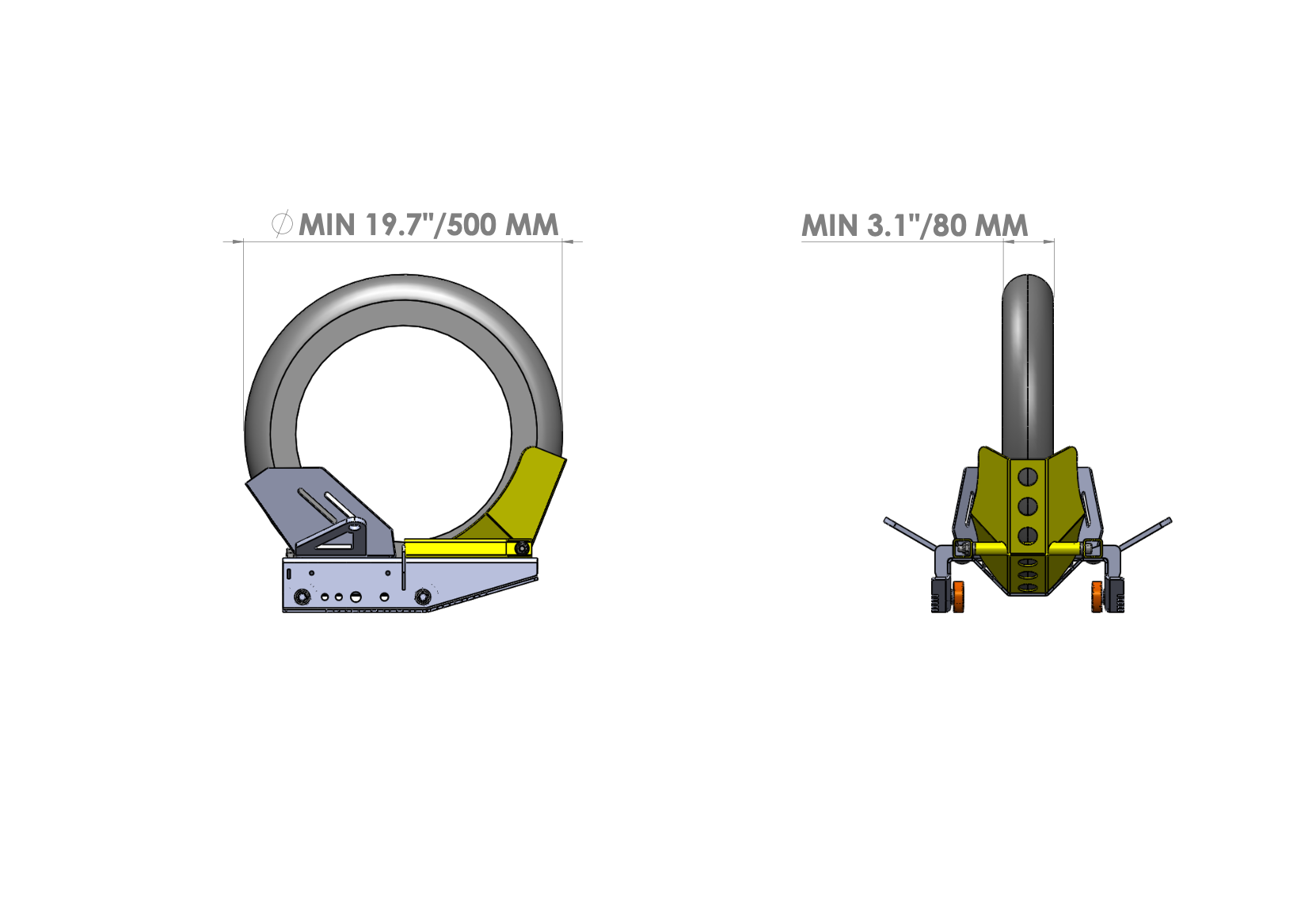

Minimum Tire Requirements
To ensure the bike engages safely with the ramp's locking features, your front tire should meet these minimum size requirements.
- Minimum Tire Diameter: 19.7" / 500 mm.
- Minimum Front Tire Width: 3.1" / 80 mm

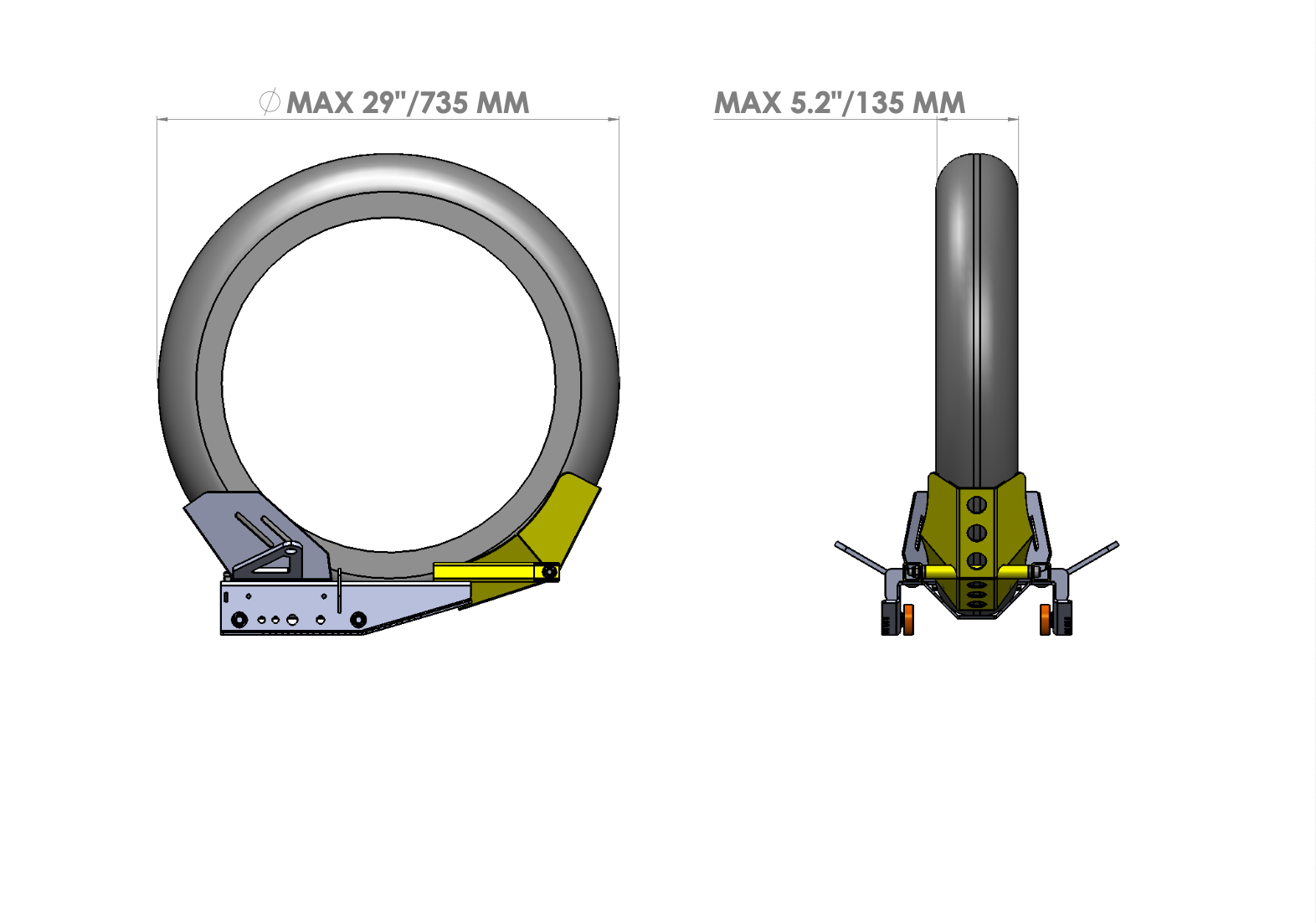

Maximum Limits & Custom Loading
For bikes with larger front tires or unique setups, the ramp supports the following maximums. If your tire falls outside these specifications, you can still utilize the ramp by following the workaround below.
- Maximum Tire Diameter: 29" / 735 mm.
- Maximum Front Tire Width: 5.2" / 135 mm.
Loading with Out-of-Spec Tires
If your front tire is larger or smaller than the standard limits, you can still load the bike by removing the yellow flipper component. Please note that if the flipper is removed, the ramp will not hold the bike independently; you must hold the bike upright by hand while attaching your tie-down straps.

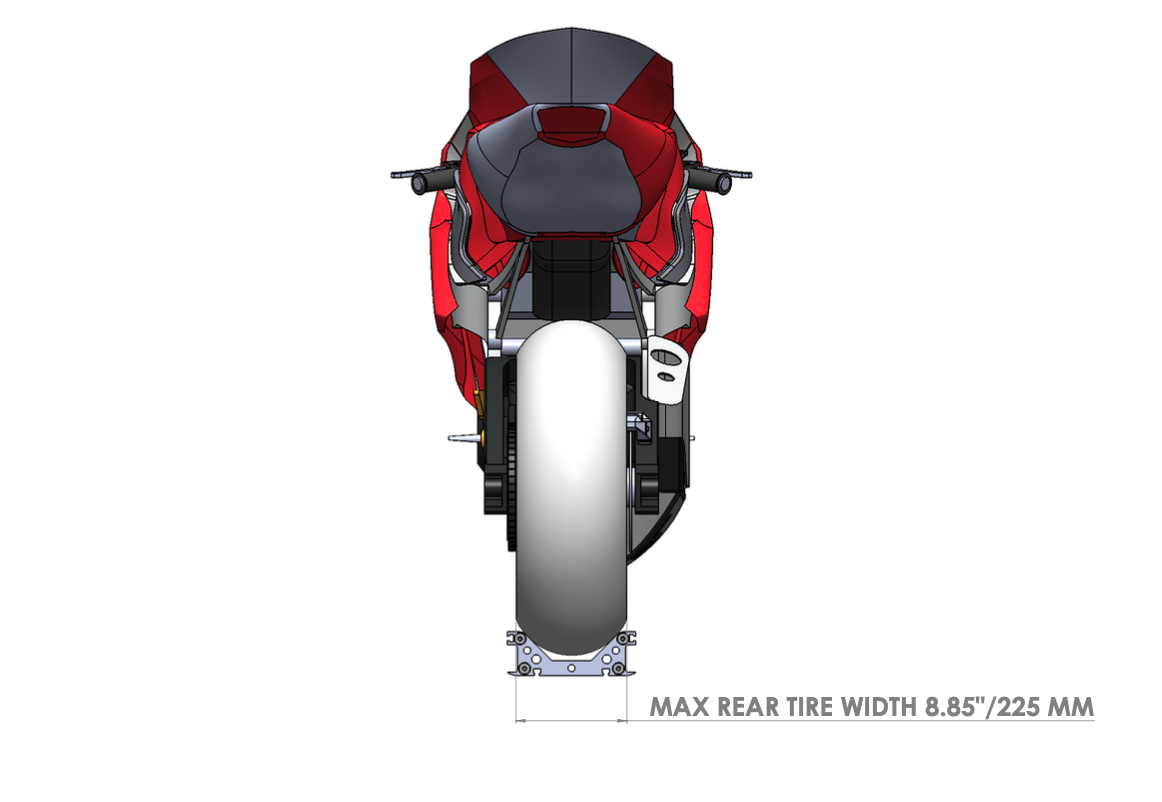

Rear Wheel Capacity
The Alien Ramp is designed to accommodate a wide range of motorcycle profiles, including those with substantial rear rubber.
- Maximum Rear Tire Width: 8.85" / 225 mm.
Ground Clearance
- Lifted Clearance: 95 mm / 3.75"
- Measurement Note: This measurement is taken with pads deployed and the ramp wheels off the floor
Loading Heights & Angles
The Alien Ramp utilizes a removable extender for loading purposes. The loading angles and total height requirements vary based on the platform height.
600 mm Platform Height
- Platform Height: 600 mm / 23.6"
- Loading Angle: 20.50°
- Total Vertical Clearance Needed (with a 1130 mm / 44.5" tall bike ): 1230 mm / 51"
900 mm Platform Height
- Platform Height: 900 mm / 35.5"
- Loading Angle: 31.50°
- Total Vertical Clearance Needed (with a 1130 mm / 44.5" tall bike ): 1272 mm / 50"
Dual Staggered Setup
- Total Width (Dual Setup): 1250 mm
- Total Length (Staggered Setup): 2260 mm
- Staggered Offset Distance: 315 mm
- Maximum Handlebar Width Compatibility: 650 mm
